LS-14

All-in-one light liquid sampling, mixing, and containment for multiple subsamples

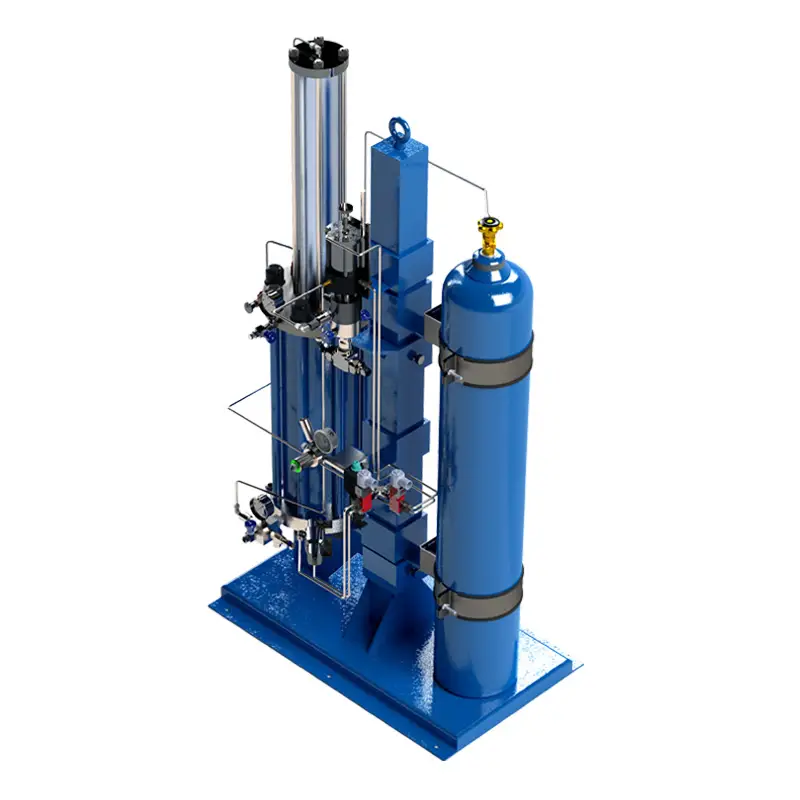

The Welker LS-14 Light Liquid Sampling System is an all-in-one solution designed to collect, mix, and maintain a large-volume representative composite sample of light liquid products. Ideal for custody transfer, refined product analysis, and applications requiring multiple subsamples, the LS-14 combines a Welker sample pump, large-capacity constant pressure sample container, built-in push-button mixer, inert pre-charge gas supply tank, and optional Mod Skid™. By maintaining collected samples at pipeline condition and mixing before withdrawal and transport, the LS-14 supports accurate BS&W, Reid vapor pressure, octane, composition, and quality analysis.

Where to Use

Light Liquid Composite Sampling

Composite sampling of light liquid products where more than one subsample is required.

Custody Transfer Applications

Sampling applications requiring multiple subsamples for buyer, seller, and third-party laboratory analysis.

Product Quality Analysis

Refined product sampling for Reid vapor pressure, octane, composition, and other quality tests.

Complies With:

API 8.2 API 8.3 API 8.4

Resources

LS-14 IOM LS-14 Data Sheet

Welker Sample Pump

Provides proven sample collection performance for light liquid and refined product applications.

Large-Capacity Constant Pressure Sample Container

Maintains collected samples at pipeline condition to help protect sample integrity.

Visual Volume Indicator

Allows operators to monitor collected sample volume during sampling operations.

Built-In Mixer With Push-Button Actuation

Provides a uniform sample mixture before withdrawal and transport.

Inert Pre-Charge Gas Supply Tank

Supports constant pressure sample containment using customer-supplied inert pre-charge gas.

Optional Mod Skid™ With Center Mast and Lifting Lug

Makes installation and relocation easier while allowing detachable components to be serviced quickly.

Compact All-in-One Design

Combines sampling, containment, and mixing in one system to reduce footprint and simplify operation.

	LS-14
Materials of Construction	316/316L Stainless Steel, Aluminum, Carbon Steel, FKM, PTFE
Materials of Construction	Others Available
Maximum Allowable Operating Pressure	2160 psig @ -20 °F to 100 °F (148 barg @ -28.8 °C to 37.8 °C) (Standard)
Maximum Allowable Operating Pressure	Others Available
Connections	Composite Sample Draw-Off: ¼" FNPT
	Inert Gas Supply Fill Inlet: ¼" FNPT
	Pneumatic Supply Inlet (Optional): ¼" Tubing
	Product Return: ¼" FNPT
	Sample Inlet: ¼" FNPT
Utility Requirements	5 or 10 US Gallon Hydraulic Oil Reservoir (Optional)
Utility Requirements	Inert Gas Supply
Volume*	1½ US Gallons @ 80%
	3 US Gallons @ 80%
	5 US Gallons @ 80%
	10 US Gallons @ 80%
Operation	Hydraulic or Pneumatic Mixer Actuation
Approximate Weight	The 5-Gallon LS-14 Skid-Mounted System Weighs a Minimum of 800 lb
Approximate Dimensions	12" x 12" Mounting Plate (Standard)
	24" x 28" x 2" (Length x Width x Height) Painted Carbon Steel Skid
	36" x 22" x 2" (Length x Width x Height) Painted Carbon Steel Skid
	42" x 30" x 2" (Length x Width x Height) Painted Carbon Steel Skid
Features	Composite Sample Draw-Off Port/Valve
	Inert Gas Supply Tank
	Inert Gas Supply Tank Port/Valve
	Manifold Block
	Mixer Actuation Solenoid
	Plate Mixer
	Pressure Gauges
	Product Return Port/Valve
	Sample Inlet Port / Check Valve
	Skid Weld Assembly
	Visual Magnetic Volume Indicator
